Chromic Acid Chemical Liquid Filter 150L/Min 380V 1HP Chemical Filtration System

Product Categories
Dongguan Meibao Environmental Protection Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

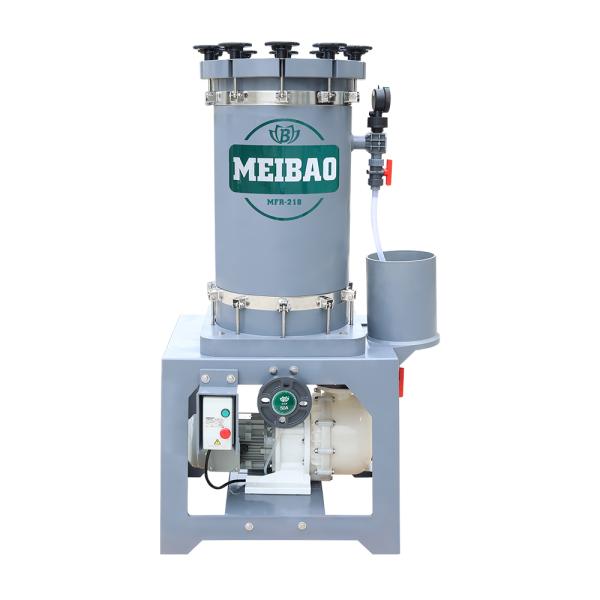

Chromic Acid Chemical Liquid Filter 150L/Min 380V 1HP Chemical Filtration System

Brand Name : Meibao

Model Number : MFR-206-1

Place Of Origin : China

MOQ : 1

Delivery Time : 5 days

Payment Terms : T/T, L/C, WeChat Pay

Supply Ability : 5000 sets/month

Packaging Details : Carton+wooden case

Inlet/Outlet size : DN 40×40mm

Fliteration capacity : 150L/min

Pump motor : 1HP

Filter chamber material : UPVC, PVDF,TI

Filter cartridge : 20" × 4 pcs(lock-cap type)

Pump material : PVDF

Voltage : 380V, 220V, 110V, 400V, 415V, Or Customize

Speed : 2900rpm

Seal ring material : VITON

Contact Now

Product Name: PVDF Chemical Liquid Filter System

Parameter Range And Product Features:

Filtration Capacity: 150 L/min (9 m³/h)
Working Pressure: 1.0 MPa Max.
Power: 1 HP
Pump Material: PVDF (Polyvinylidene Fluoride)
Filter Housing Material: PVDF or Optional PP
Filter Element Material: PP Cartridge (Standard), Optional Nylon, PTFE
Filter Rating: 1 ~ 100 Micron (Customizable)
Seals Material: EPDM (Standard), Optional Viton®
Voltage: 380V, 400V, 415V / 220V, 110V (50/60Hz), Or Customized
Features: Excellent corrosion resistance for strong acids and alkalis. Multi-voltage motor option for global use. Compact and modular design for easy maintenance and filter element replacement. Low operating noise and high filtration efficiency. Leak-proof structure with a high safety factor, suitable for continuous duty in chemical filtration, plating lines, and wastewater treatment.


Product Tags:

Chromic Acid Chemical Liquid Filter



150L/min Industrial Liquid Filter



1HP Chemical Filtration System


Wholesale Chromic Acid Chemical Liquid Filter 150L/Min 380V 1HP Chemical Filtration System from china suppliers

Chromic Acid Chemical Liquid Filter 150L/Min 380V 1HP Chemical Filtration System Images
